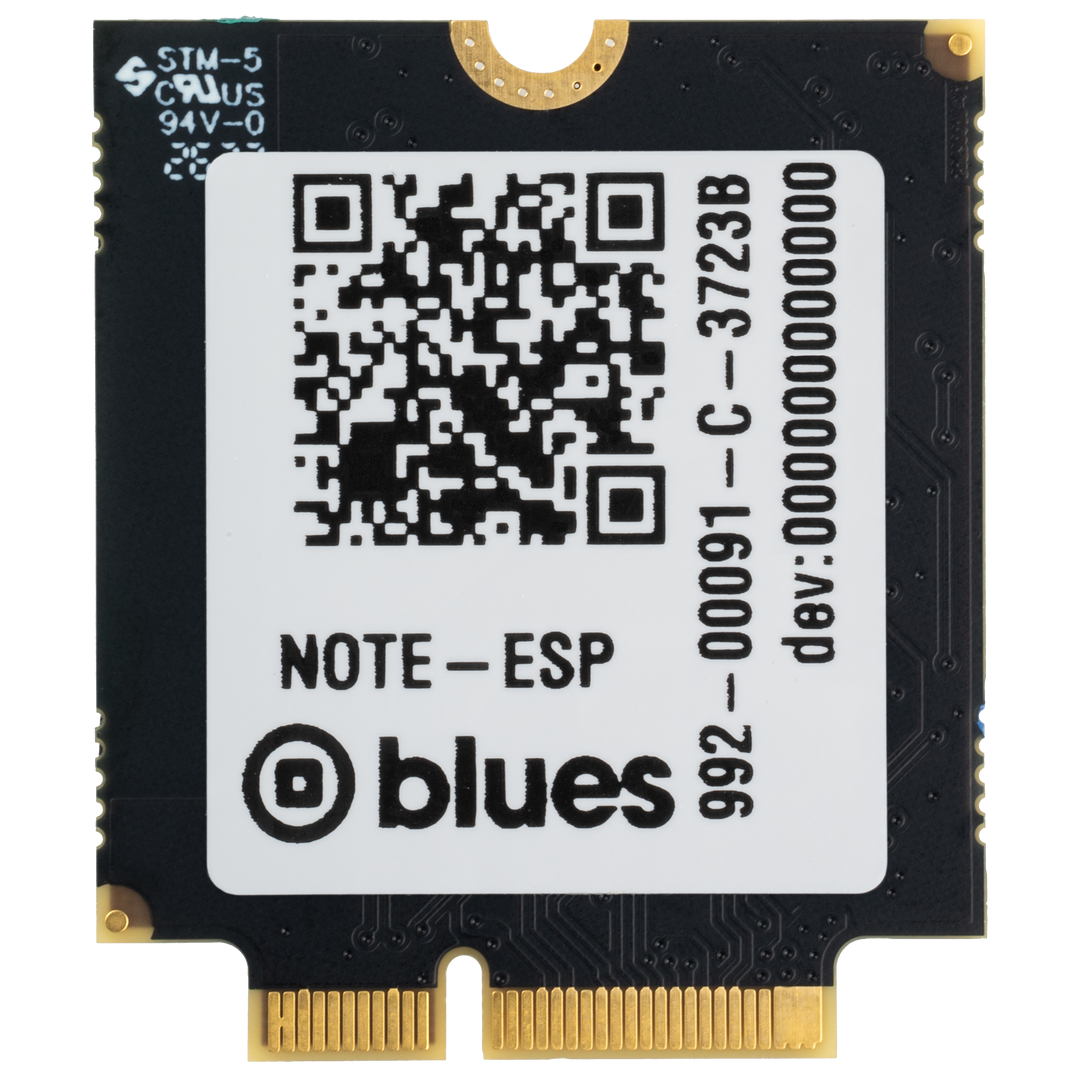

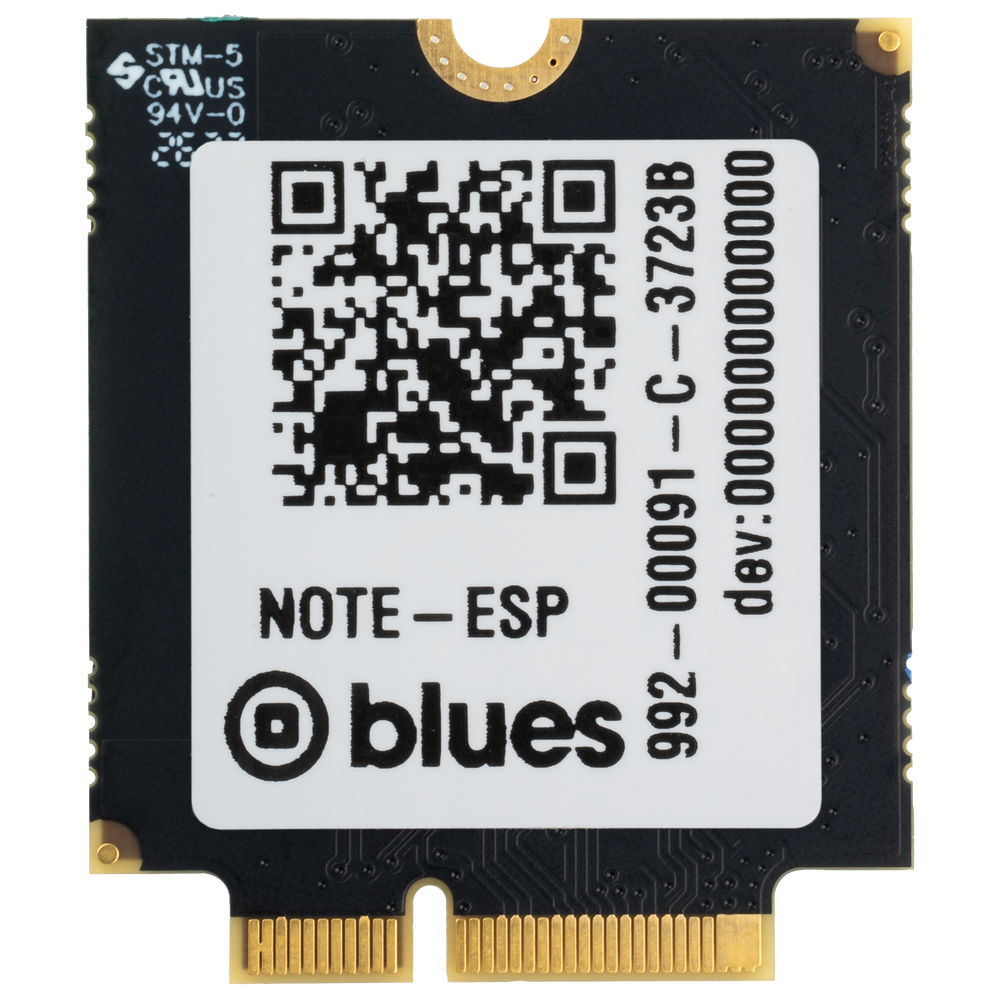

Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with WiFi. As an embeddable system on module (SoM), Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers. Notecard WiFi is a lower-cost version of cellular-based Notecards for 2.4 GHz WiFi only, and is API-compatible with cellular-based Notecards. Notecard WiFi also supports location tracking via WiFi Triangulation. |
With just two lines of code you can send data to the cloud in minutes, with no complex device registration or provisioning required. With a powerful JSON-based API, you can program Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to Notecard using Serial or I2C.
Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.
Notecard is meant to be used with a Notecarrier. Notecard WiFi is compatible with all available Notecarriers. See the Notecarriers section for more details or get started with a Blues Starter Kit.
Ordering Note: Notecards purchased from the Blues Shop will ship with a Developer Firmware Release version pre-installed. If you require a Long-Term Support (LTS) version for a Shop order, please contact Sales for assistance.
Available Variations
- 2.4 GHz WiFi (Datasheet)
Key Notecard WiFi Specs

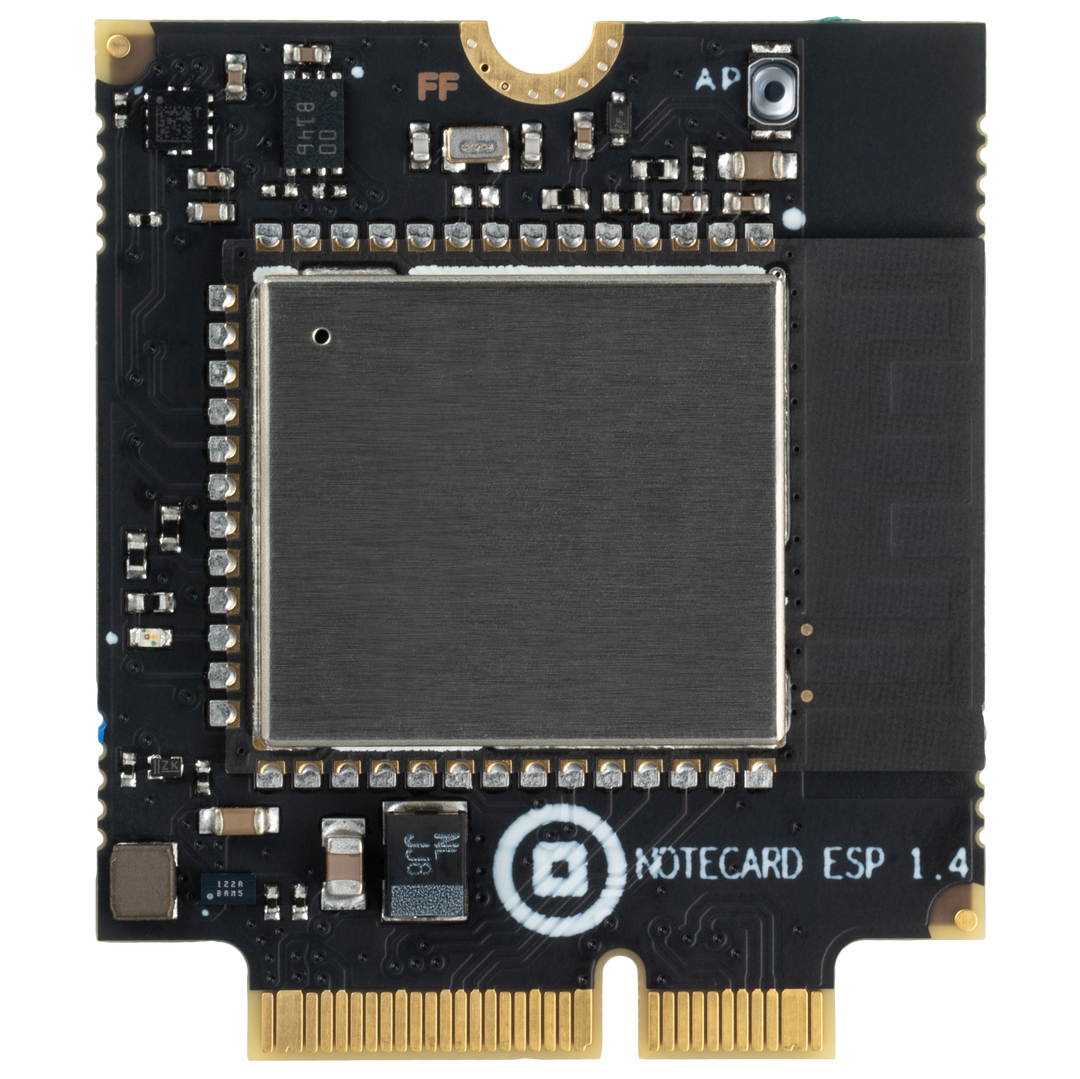

- Utilizes the ESP32-S3-WROOM-1-N8R2 for connecting to 2.4 GHz WiFi networks.
- JSON- and SoftAP-based provisioning support.
- Onboard ultra-low power ESP32 MCU with 8MB flash memory.
- High-performance 3-axis accelerometer and temperature sensor.
