Notecarrier XS

$15.00
/
Shipping calculated at checkout.

Notecarriers are companion development boards and designed to make it easy to prototype and deploy IoT solutions with the Notecard.

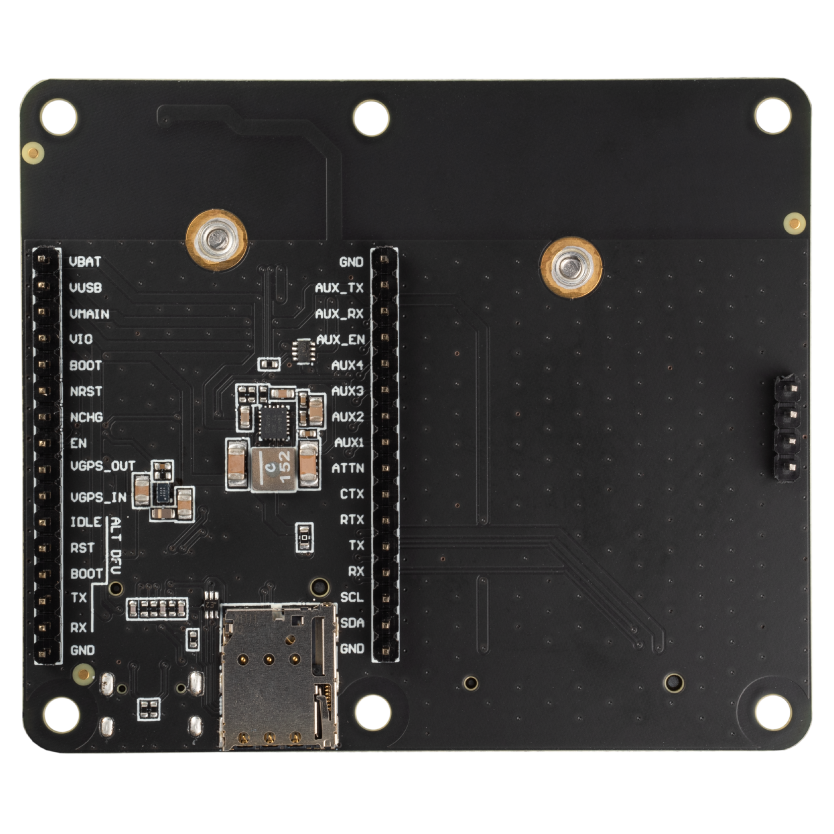

Notecarrier XS is the companion Notecarrier to Starnote and Notecard, providing a platform for prototyping with Satellite failover. Notecarrier XS includes two M.2 Key E connector sockets and internal connectivity for Notecard to Starnote communication. The Notecarrier XS also includes JST connectors for LiPo battery and charging support, as well as Qwiic and ESLOV ports for connecting the Notecard to host MCUs over I2C.

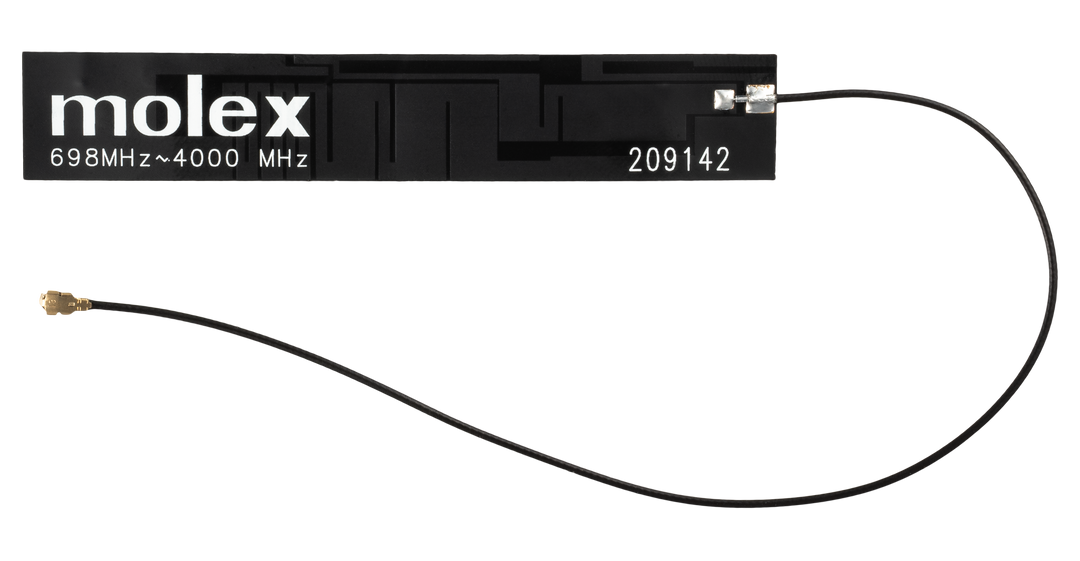

Included is Flexible LTE, Wi-Fi, or GPS/GNSS Antenna. If you require a dual LTE/GPS antenna, we recommend adding on the flexible LTE+GPS antenna (or you may choose to use your own preferred antenna).

Notecarriers require a Notecard to function. The Notecarrier XS is compatible with the Notecard Cellular, Notecard Cell+WiFi, and Notecard WiFi.

Available Variations

  • Notecarrier XS with Loose Header Pins

Key Notecarrier XS Specs

  • Notecard M.2 Key E connector socket and mounting screw receptacle.

  • Starnote M.2 Key E connector socket and mounting screw receptacle.

  • USB-C port to power Notecarrier and provide a USB Serial command interface to Notecard.

  • External Nano-SIM slot for use of an optional secondary SIM.

  • 2-Pin JST PH connectors for LiPo battery power and charging support.

  • 1 Qwiic/StemmaQT I2C port for attaching external peripherals.

  • 1 ESLOV port for attaching the Notecard to Arduino MKR or PRO boards.

Additional Resources

Notecard Cellular (Legacy)

$59.00
/
Shipping calculated at checkout.

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with secure, reliable cellular. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

With just two lines of code you can send data to the cloud in minutes, with no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

The Notecard is meant to be used with a Notecarrier. The Notecard Cellular is compatible with all available Notecarriers. See the Notecarriers section for more details or get started with a Blues Starter Kit.

Available Variations

Key Notecard Cellular Specs

  • Includes a secure element with a factory-installed ECC P-384 certificate, provisioned at chip manufacture.
  • Integrated GPS and accelerometer.
  • Designed to operate on battery power, be "always-on" to maintain time and location, while typically drawing less than 8µA@5V, when idle.
  • Bundled with 10 years of service and 500MB of cellular data.
  • No cellular subscriptions, SIM fees, or monthly minimums apply.
  • PTCRB Certified Module.

Additional Resources

Notecard Cellular (OUT OF STOCK)

$53.00
/
Shipping calculated at checkout.

Featuring an improved STM32 MCU, an onboard dual SIM capability, and an improved Low IQ power supply, the new Notecard Cellular is a drop-in functional replacement for original “Green” Notecard at a lower price.

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with secure, reliable cellular. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

With just two lines of code you can send data to the cloud in minutes, with no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

The Notecard is meant to be used with a Notecarrier. The Notecard Cellular is compatible with all available Notecarriers. See the Notecarriers section for more details or get started with a Blues Starter Kit.

Available Variations

Key Notecard Cellular Specs

  • Includes a secure element with a factory-installed ECC P-384 certificate, provisioned at chip manufacture.

  • Integrated GPS and accelerometer.

  • Designed to operate on battery power, be "always-on" to maintain time and location, while typically drawing less than 8µA@5V, when idle.

  • Bundled with 10 years of service and 500MB of cellular data.

  • No cellular subscriptions, SIM fees, or monthly minimums apply.

  • PTCRB Certified Module.

Additional Resources

Notecard Cell+WiFi

$72.00
/
Shipping calculated at checkout.

New for Spring 2024! The Notecard Cell+WiFI (MB) adds an LTE Cat 1 bis Notecard to complement our existing Notecard SKUs. This new, “Midband” Notecard provides a step-up in performance from 2G/3G, Cat-M, and NB-IoT without a big step-up in price.

NOTE: Notecard Cell+WiFi quantities are limited. Lead times may vary as we fulfill customer orders in the coming weeks!

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with secure, reliable cellular and Wi-Fi. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

The Notecard Cell+WiFi allows for dynamic fallback from Wi-Fi to cellular and indoor location tracking via Wi-Fi Triangulation.

With just two lines of code you can send data to the cloud in minutes, with no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

The Notecard is meant to be used with a Notecarrier. The Notecard Cell+WiFi is compatible with the Notecarrier F, Notecarrier Pi Hat, Notecarrier B, and Notecarrier R.

Available Variations

Key Notecard Cell+WiFi Specs

  • Includes a secure element with a factory-installed ECC P-384 certificate, provisioned at chip manufacture.
  • Integrated GPS and accelerometer.
  • Designed to operate on battery power, be "always-on" to maintain time and location, while typically drawing less than 18µA@5V, when idle.
  • Bundled with 10 years of service and 500MB of cellular data.
  • No cellular subscriptions, SIM fees, or monthly minimums apply.
  • PTCRB Certified Module.
  • Includes a 2.4 GHz Wi-Fi module with Wi-Fi to Cellular fallback capabilities.

Additional Resources

Notecard for LoRa

$10.00
/
Shipping calculated at checkout.

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with LoRa/LoRaWAN. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

The Notecard for LoRa is a lower-cost version of the cellular-based Notecards for LoRa only, and is API-compatible with the cellular- and WiFi-based Notecards (with some exceptions). The Notecard for LoRa supports The Things Network gateways. Included is a flexible Molex 211140 antenna that supports both 868 MHz (Europe) and 915 MHz (United States) frequencies.

With just two lines of code you can send data to the cloud in minutes, no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

The Notecard is meant to be used with a Notecarrier. The Notecard for LoRa is compatible with all available Notecarriers. See the Notecarriers section for more details or get started with a Blues Starter Kit.

Available Variations

Key Notecard Specs

  • Onboard ultra-low-power STM32WL LoRa MCU.
  • Compatible with LoRaWAN and The Things Network.

Additional Resources
