Notecarrier B

$15.00
/
Shipping calculated at checkout.

Notecarriers are companion development boards designed to make it easy to prototype and deploy IoT solutions with the Notecard.

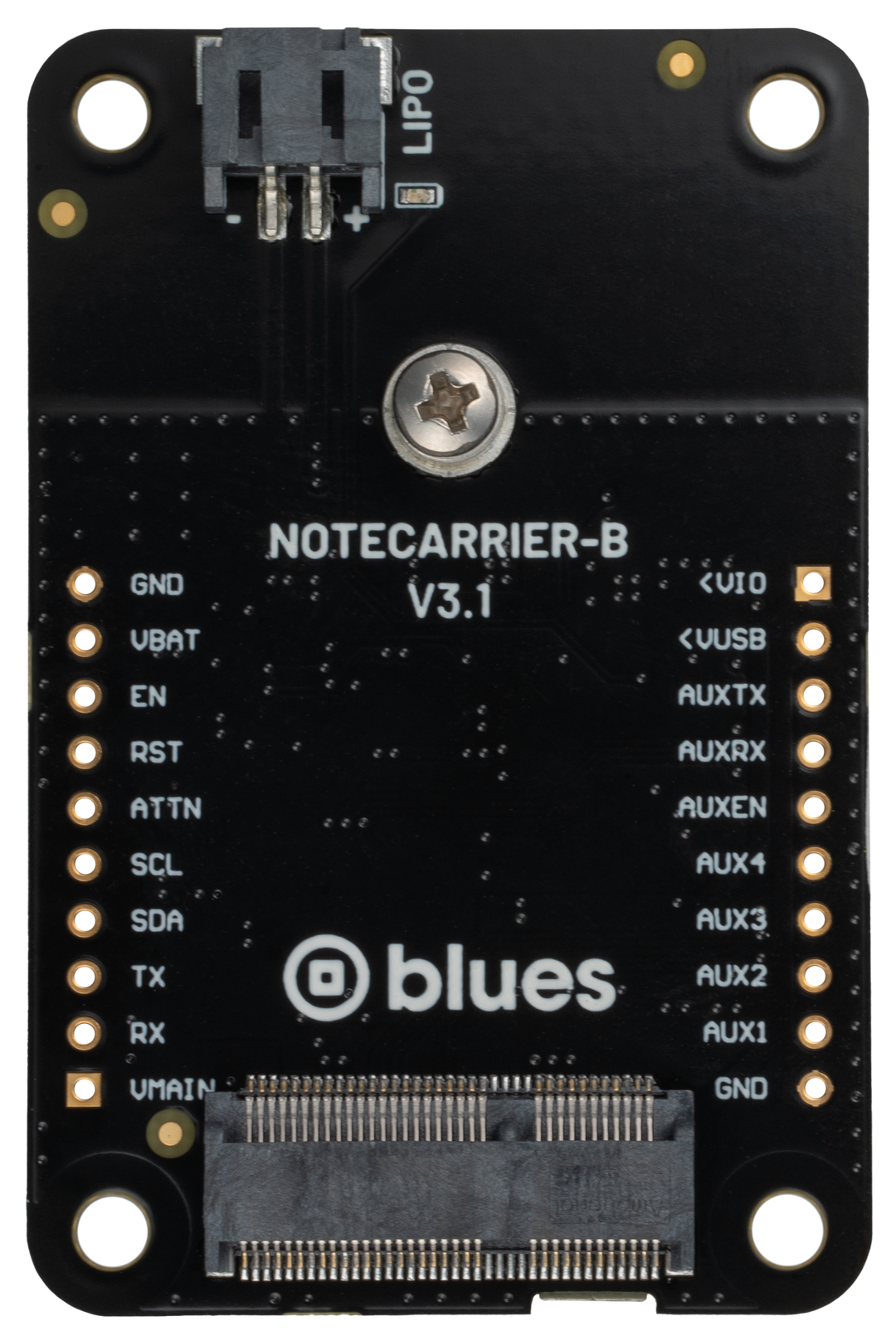

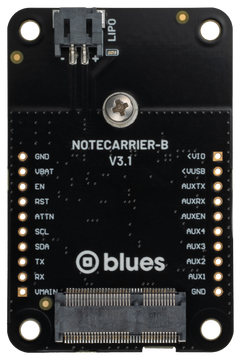

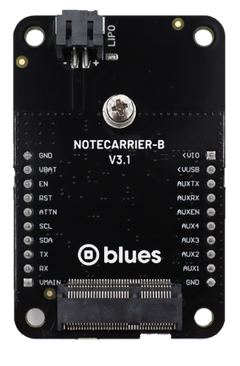

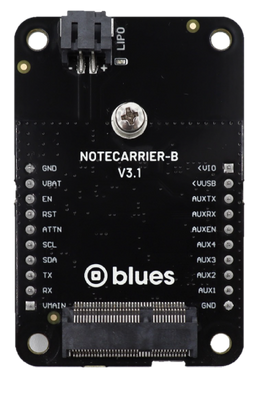

Notecarrier B is a small form-factor Notecarrier, only slightly larger than the Notecard itself. Unlike other Notecarriers, the Notecarrier B does not include an external SIM slot.

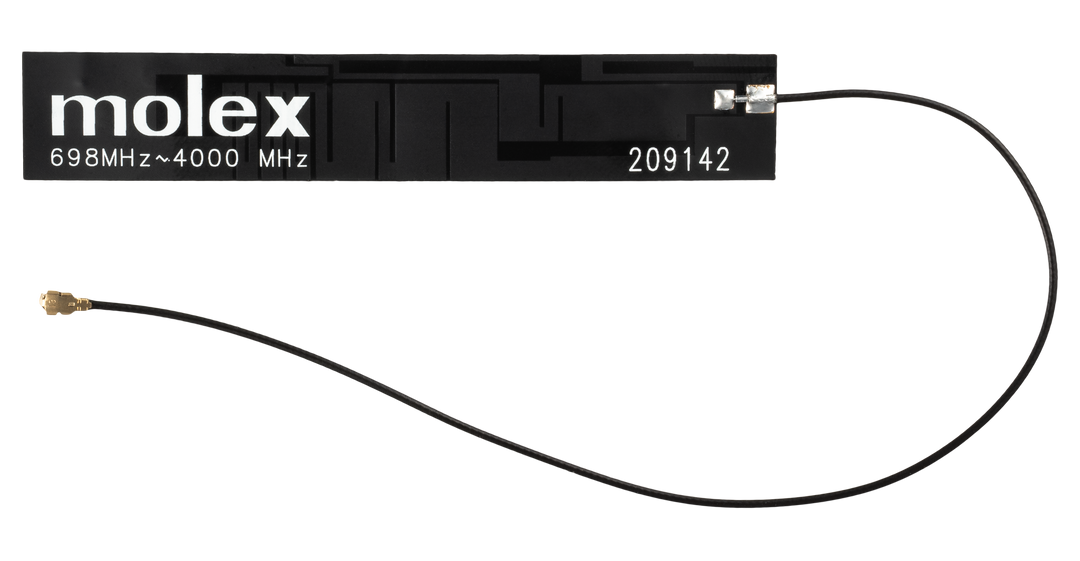

Included is a flexible Molex 209142 antenna for use with either LTE or GPS. If you require a dual LTE/GPS antenna, we recommend adding on the flexible LTE+GPS antenna (or you may choose to use your own preferred antenna).

Notecarriers require a Notecard to function. The Notecarrier B is compatible with all available Notecards. See the Notecards section for more details or get started with a Blues Starter Kit.

Available Variations

  • Notecarrier B with Pre-soldered Headers (Datasheet)

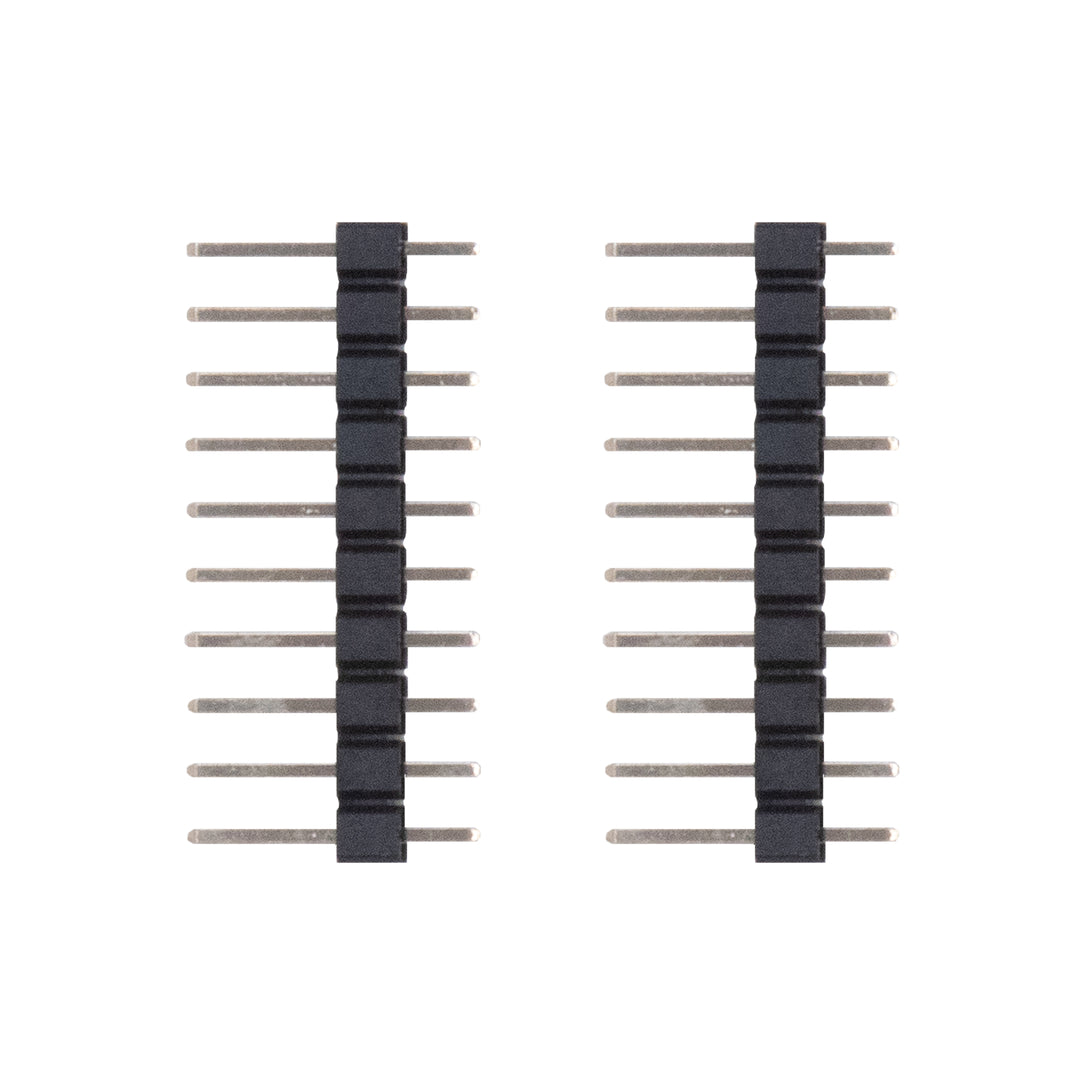

  • Notecarrier B with Loose Header Pins (Datasheet)

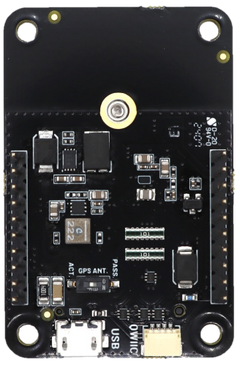

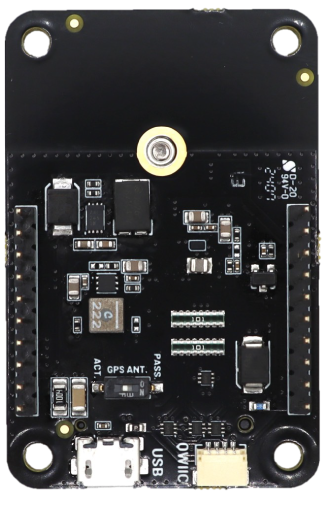

Key Notecarrier B Specs

  • Notecard M.2 Key E connector socket and mounting screw receptacle.
  • 2-Pin JST PH connecter for LiPo battery power support.
  • 1 Qwiic/StemmaQT I2C port for attaching external peripherals.
  • Dip switch for using active or passive GPS/GNSS antenna.

Additional Resources

Notecard Cellular (Legacy)

$59.00
/
Shipping calculated at checkout.

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with secure, reliable cellular. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

With just two lines of code you can send data to the cloud in minutes, with no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

The Notecard is meant to be used with a Notecarrier. The Notecard Cellular is compatible with all available Notecarriers. See the Notecarriers section for more details or get started with a Blues Starter Kit.

Available Variations

Key Notecard Cellular Specs

  • Includes a secure element with a factory-installed ECC P-384 certificate, provisioned at chip manufacture.
  • Integrated GPS and accelerometer.
  • Designed to operate on battery power, be "always-on" to maintain time and location, while typically drawing less than 8µA@5V, when idle.
  • Bundled with 10 years of service and 500MB of cellular data.
  • No cellular subscriptions, SIM fees, or monthly minimums apply.
  • PTCRB Certified Module.

Additional Resources

Notecard Cellular

$53.00
/
Shipping calculated at checkout.

Featuring an improved STM32 MCU, an onboard dual SIM capability, and an improved Low IQ power supply, the new Notecard Cellular is a drop-in functional replacement for original “Green” Notecard at a lower price.

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with secure, reliable cellular. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

With just two lines of code you can send data to the cloud in minutes, with no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

The Notecard is meant to be used with a Notecarrier. The Notecard Cellular is compatible with all available Notecarriers. See the Notecarriers section for more details or get started with a Blues Starter Kit.

Available Variations

Key Notecard Cellular Specs

  • Includes a secure element with a factory-installed ECC P-384 certificate, provisioned at chip manufacture.

  • Integrated GPS and accelerometer.

  • Designed to operate on battery power, be "always-on" to maintain time and location, while typically drawing less than 8µA@5V, when idle.

  • Bundled with 10 years of service and 500MB of cellular data.

  • No cellular subscriptions, SIM fees, or monthly minimums apply.

  • PTCRB Certified Module.

Additional Resources

Notecard Cell+WiFi

$72.00
/
Shipping calculated at checkout.

The Notecard Cell+WiFI (MB) adds an LTE Cat 1 bis Notecard to complement our existing Notecard SKUs. This new, “Midband” Notecard provides a step-up in performance from 2G/3G, Cat-M, and NB-IoT without a big step-up in price.

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with secure, reliable cellular and Wi-Fi. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

The Notecard Cell+WiFi allows for dynamic fallback from Wi-Fi to cellular and indoor location tracking via Wi-Fi Triangulation.

With just two lines of code you can send data to the cloud in minutes, with no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

The Notecard is meant to be used with a Notecarrier. The Notecard Cell+WiFi is compatible with all Notecarriers except the Notecarrier A. See the Notecarriers section for more details or get started with a Blues Starter Kit.

Available Variations

Key Notecard Cell+WiFi Specs

  • Includes a secure element with a factory-installed ECC P-384 certificate, provisioned at chip manufacture.
  • Integrated GPS and accelerometer.
  • Designed to operate on battery power, be "always-on" to maintain time and location, while typically drawing less than 18µA@5V, when idle.
  • Bundled with 10 years of service and 500MB of cellular data.
  • No cellular subscriptions, SIM fees, or monthly minimums apply.
  • PTCRB Certified Module.
  • Includes a 2.4 GHz Wi-Fi module with Wi-Fi to Cellular fallback capabilities.

Additional Resources

Notecard for LoRa

$9.75
/
Shipping calculated at checkout.

Introducing the new Notecard for LoRa (2.1). Same ease of use. Same m.2 connector. 100% more castellated edges—enabling product builders to embed the Notecard directly onto a PCB for volume production.

The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with LoRa/LoRaWAN. As an embeddable system on module (SoM), the Notecard can be used with any microcontroller for both greenfield and retrofit projects using your own design, or one of our custom designed Notecarriers.

The Notecard for LoRa is a lower-cost version of the cellular-based Notecards for LoRa only, and is API-compatible with the cellular- and WiFi-based Notecards (with some exceptions). Notecard for LoRa now has the option of being on a single-sided PCB and includes castellated edges. This enables developers to use the Notecard in any Notecarrier for a POC or Prototype, and embed the module directly into a commercial product for easy volume production. The Notecard for LoRa supports The Things Network gateways. Included is a flexible Molex 211140 antenna that supports both 868 MHz (Europe) and 915 MHz (United States) frequencies.

With just two lines of code you can send data to the cloud in minutes, no complex device registration or provisioning required. With a powerful JSON-based API, you can program the Notecard over USB, or control it from your preferred microcontroller or single-board computer using one of our open-source firmware libraries. Connect from your preferred host to the Notecard using Serial or I2C.

The Notecard is designed to work with a cloud service for ingesting and processing device data. Notehub provides secure device connectivity, project and fleet management, and simple routing to 3rd party cloud services.

For prototyping, the Notecard is meant to be used with a Notecarrier. The Notecard for LoRa is compatible with all Notecarriers except the Notecarrier XS. See the Notecarriers section for more details or get started with a Blues Starter Kit.

Available Variations

Key Notecard Specs

  • Onboard ultra-low-power STM32WL LoRa MCU.

  • Compatible with LoRaWAN and The Things Network.

Additional Resources
