Notecard XP Evaluation Kit

$49.00
/
Shipping calculated at checkout.

With the same core firmware and functionality of the Notecard Cellular, Notecard XP is a low-cost option for customers looking to scale with Blues beyond their first few thousand units. Use the Notecard XP Evaluation Kit to evaluate the Notecard XP for customer design and volume deployment.

The Notecard XP is a field-upgradable, network sunset-resilient alternative to chip down cellular design that allows product builders to incorporate aspects of the Notecard hardware into their own PCB to optimize BOM costs for a volume order.

Outside of a custom product design, Notecard XP is intended to be used only with the Notecarrier XP, which provides additional hardware needed for the Notecard to function, including an external power supply and external SIM slot and circuitry. The Notecard XP cannot be used with any other Blues Notecarrier.

The Notecard XP Starter Kit contains everything needed to begin evaluating Notecard XP for a custom design and volume deployment. If, after evaluation, you would like to utilize Notecard XP as part of your solution, there is a minimum order quantity of the Notecard XP in order to receive volume pricing.

Please contact sales if you are interested in learning more.

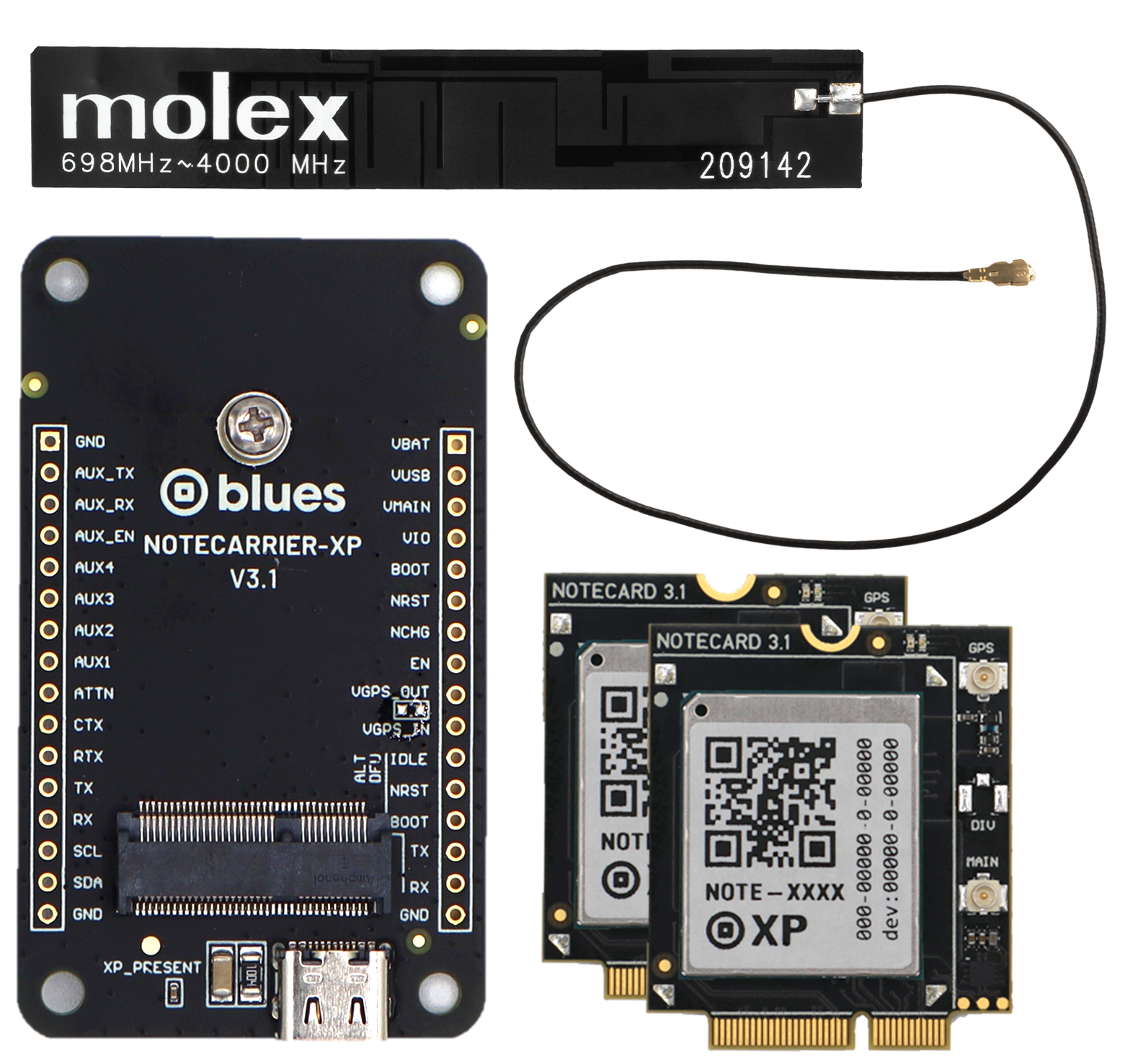

Kit contents

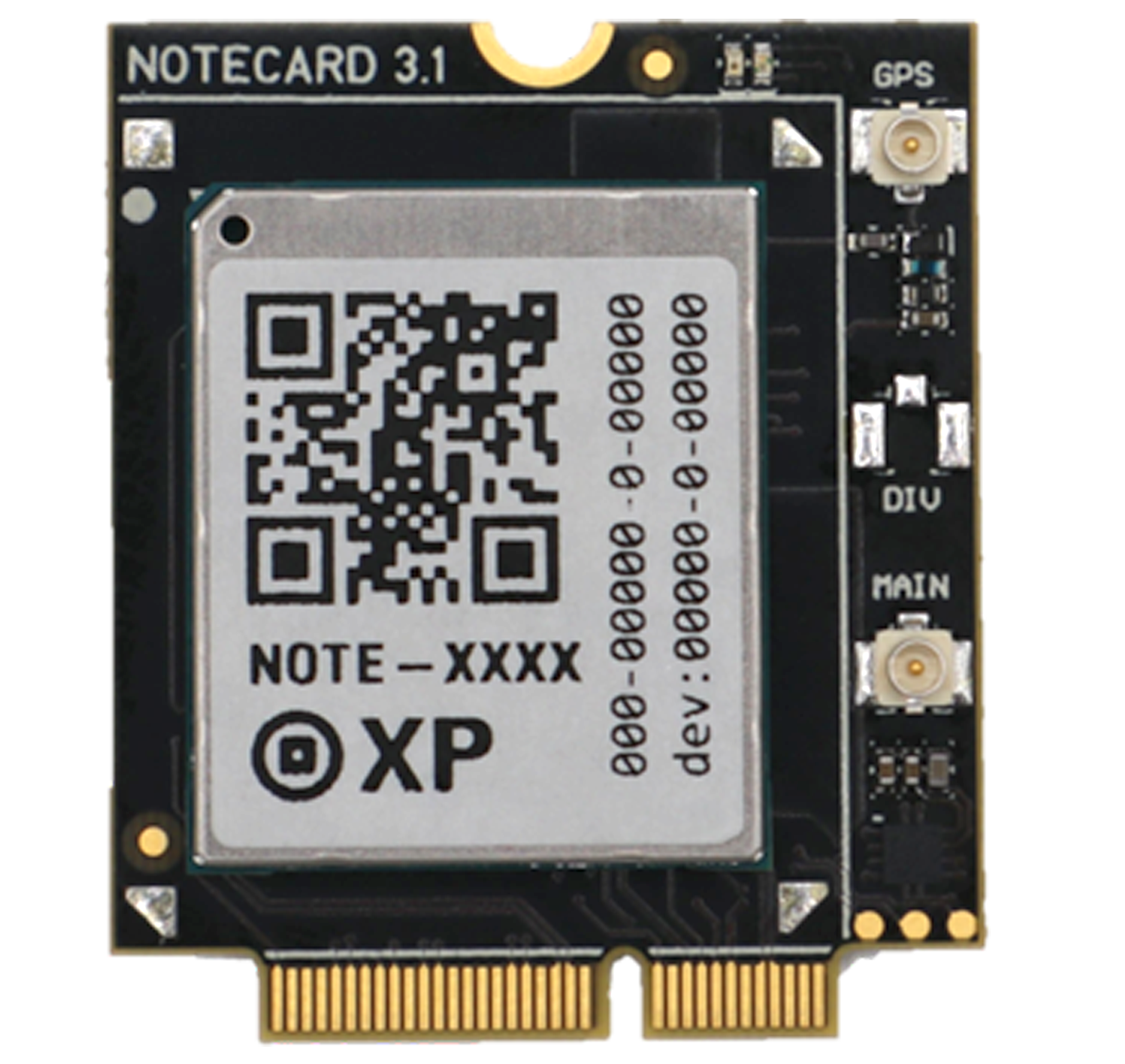

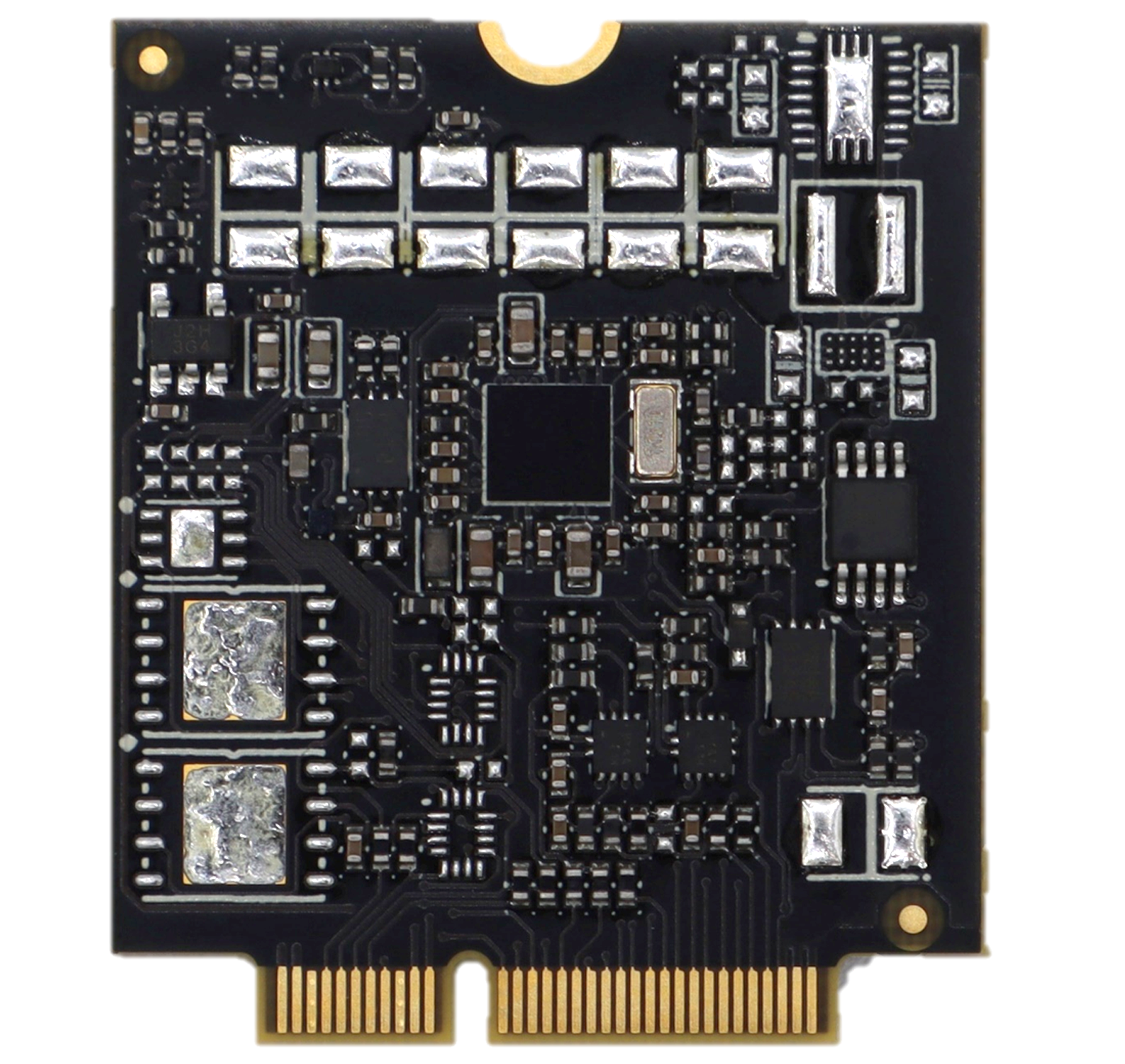

  • 1x Narrowband Global (NBGLN) “Notecard XP” with no embedded SIM

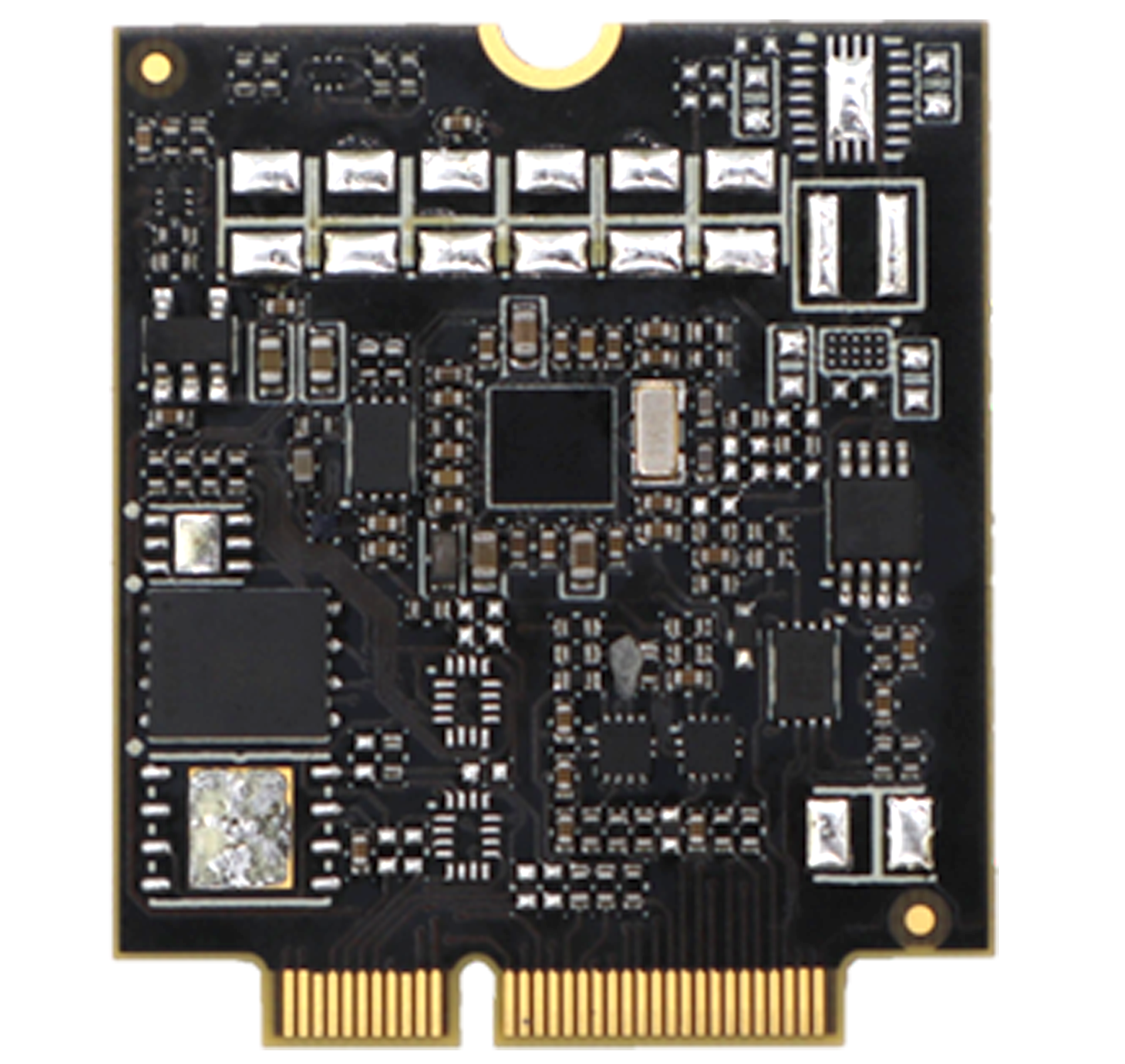

  • 1x Narrowband Global (NBGLN) “Notecard XP” with embedded SIM

  • 1x Notecarrier XP

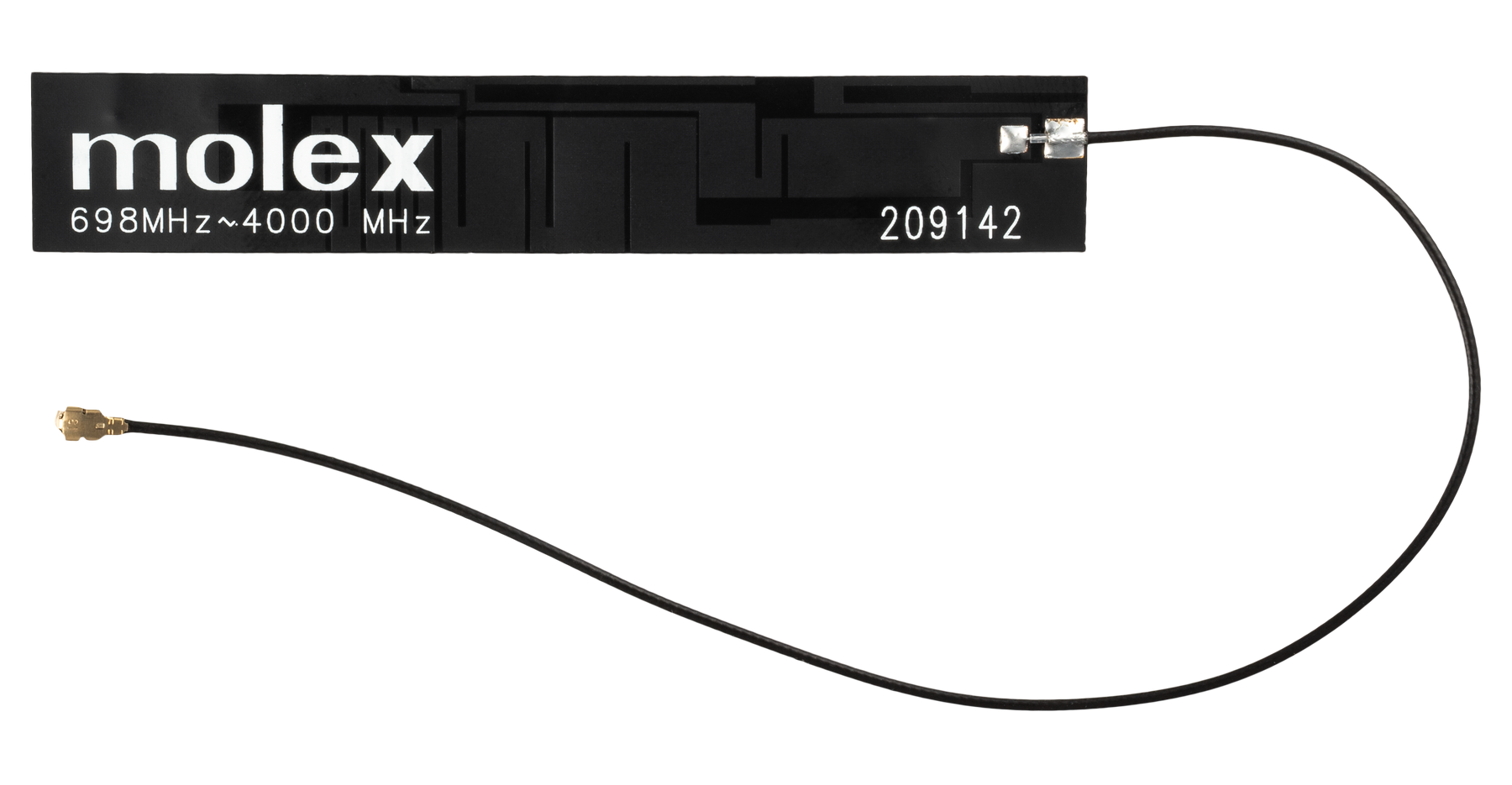

  • 1x Flexible Molex Antenna

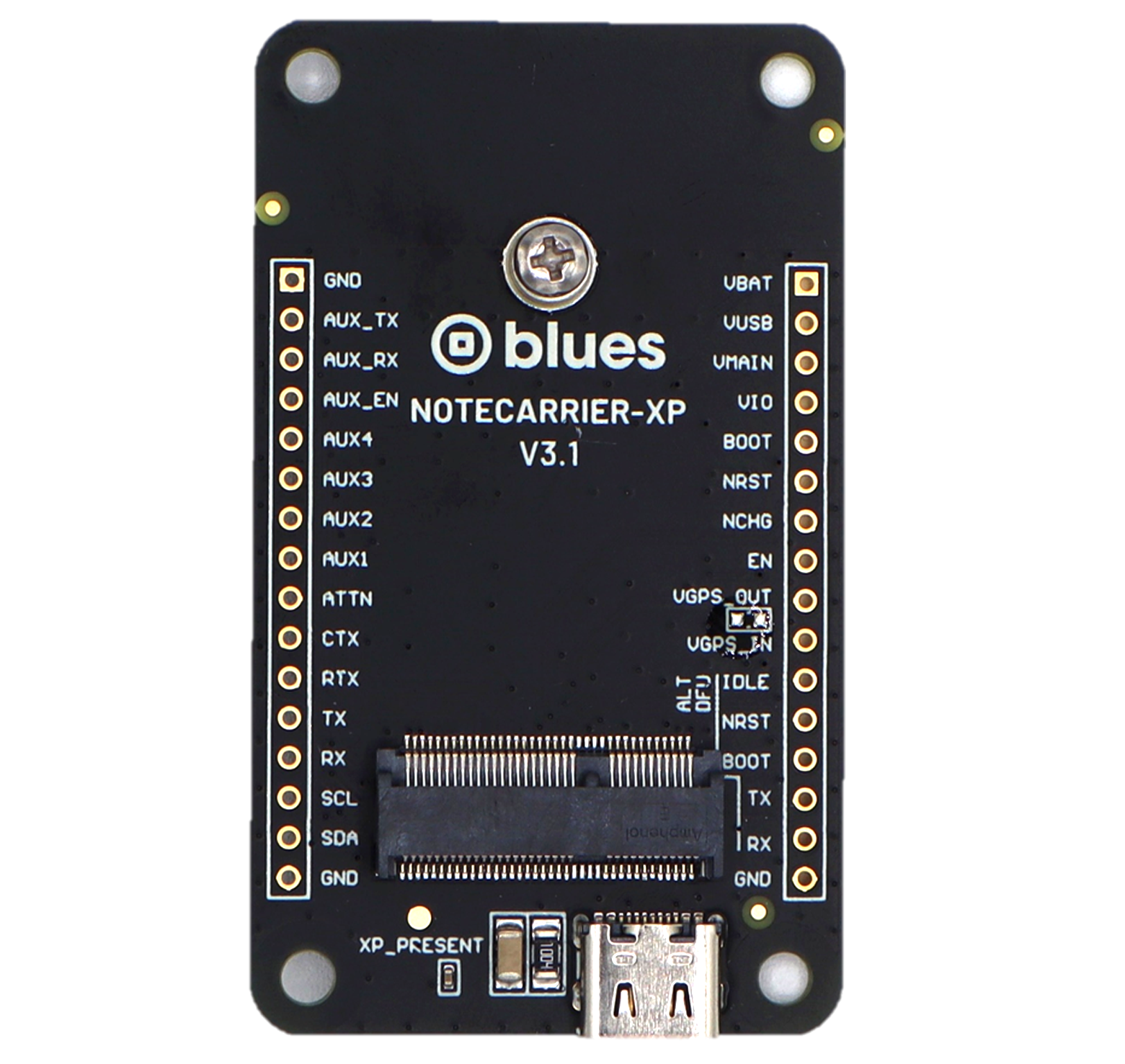

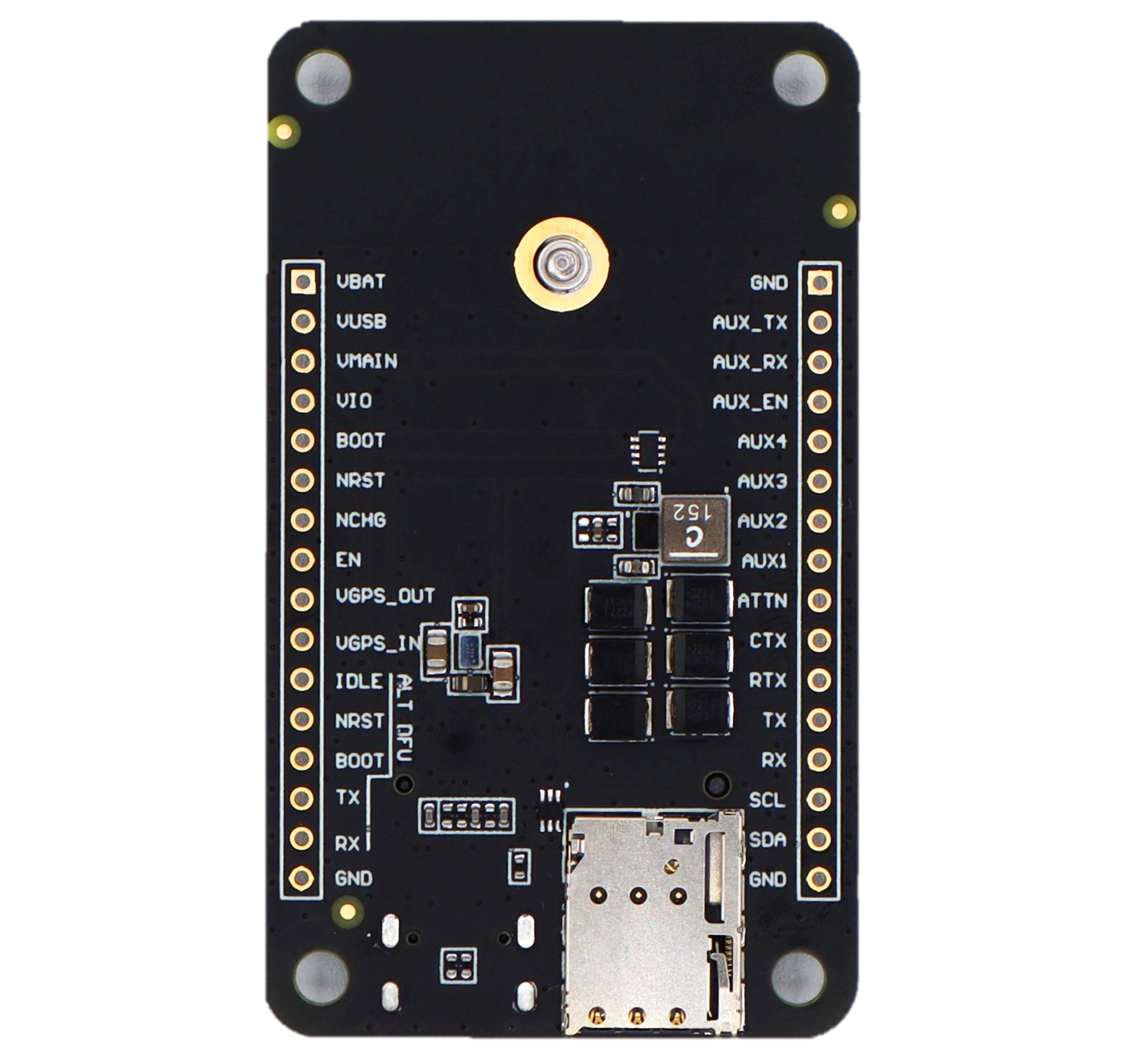

Notecarrier XP is a small form-factor Notecarrier, only slightly larger than the Notecard itself, and is the companion Notecarrier for the Notecard XP, our low-cost Notecard for volume deployments. It includes an external power supply, an external SIM slot and SIM circuitry. This Notecarrier is essential for evaluating the Notecard XP and can be used as a reference design for incorporating the Notecard XP into a volume deployment. See the Notecarrier XP datasheet for additional details.

Key Notecard XP Specs

  • Includes a secure element with a factory-installed ECC P-384 certificate, provisioned at chip manufacture.

  • Integrated GPS and accelerometer.

  • Designed to operate on battery power, be "always-on" to maintain time and location, while typically drawing less than 8µA@5V, when idle.

  • This kit includes two Notecards enabling customers to test designs with or without an external SIM.

Additional Resources
