Notecarriers are companion development boards and designed to make it easy to prototype and deploy IoT solutions with the Notecard.
Notecarrier XS is the companion Notecarrier to Starnote and Notecard, providing a platform for prototyping with Satellite failover. Notecarrier XS includes two M.2 Key E connector sockets and internal connectivity for Notecard to Starnote communication. The Notecarrier XS also includes JST connectors for LiPo battery and charging support, as well as Qwiic and ESLOV ports for connecting the Notecard to host MCUs over I2C.
Included is Flexible LTE, Wi-Fi, or GPS/GNSS Antenna. If you require a dual LTE/GPS antenna, we recommend adding on the flexible LTE+GPS antenna (or you may choose to use your own preferred antenna).

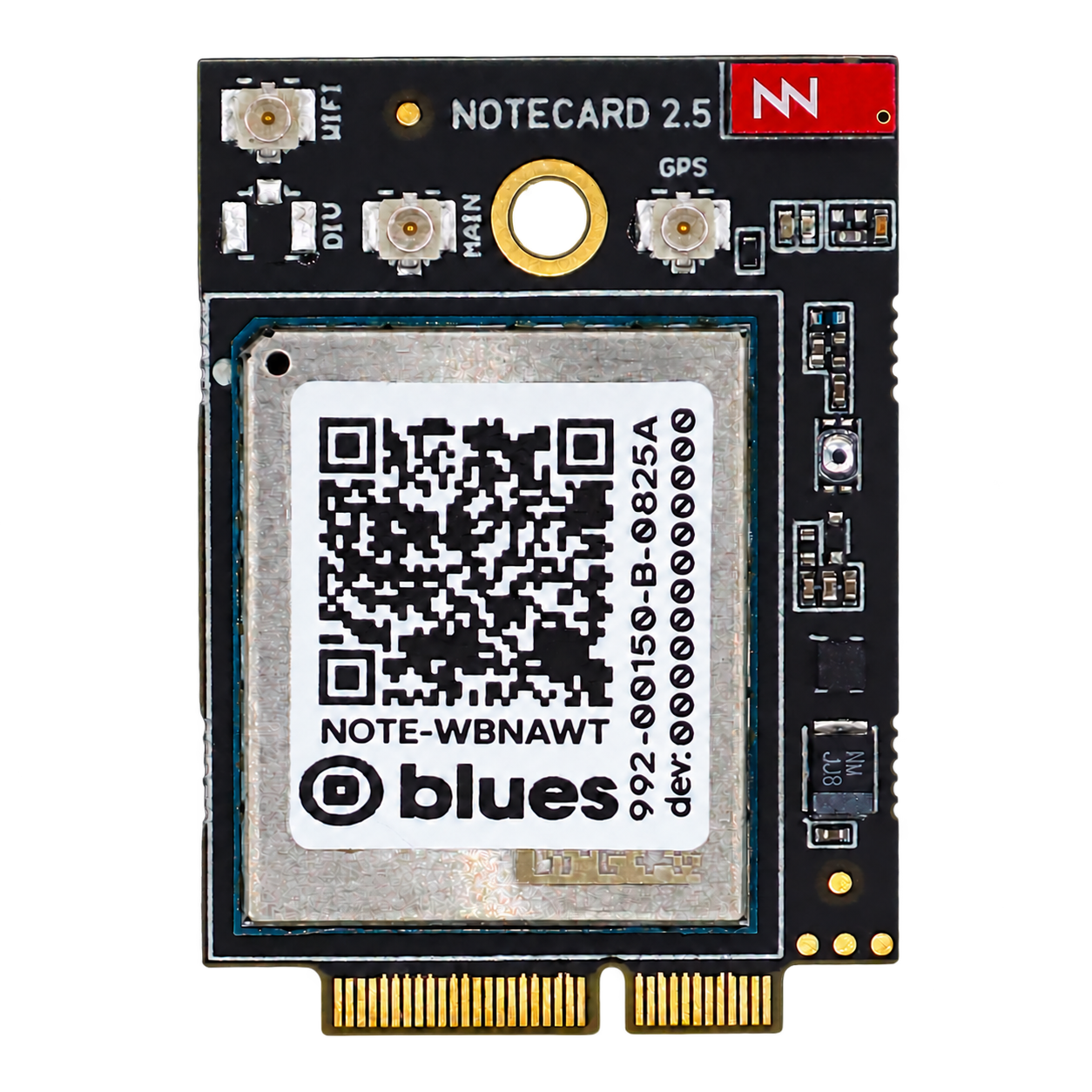

Notecarriers require a Notecard to function. The Notecarrier XS is compatible with the Notecard Cellular, Notecard Cellular (Legacy), Notecard Cell+WiFi, and Notecard WiFi. See the Notecards section for more details or get started with a Starnote Starter Kit.
Available Variations
-
Notecarrier XS with Loose Header Pins
Key Notecarrier XS Specs
-
Notecard M.2 Key E connector socket and mounting screw receptacle.
-
Starnote M.2 Key E connector socket and mounting screw receptacle.
-
USB-C port to power Notecarrier and provide a USB Serial command interface to Notecard.
-
External Nano-SIM slot for use of an optional secondary SIM.
-
2-Pin JST PH connectors for LiPo battery power and charging support.
-
1 Qwiic/StemmaQT I2C port for attaching external peripherals.
-
1 ESLOV port for attaching the Notecard to Arduino MKR or PRO boards.
Additional Resources
